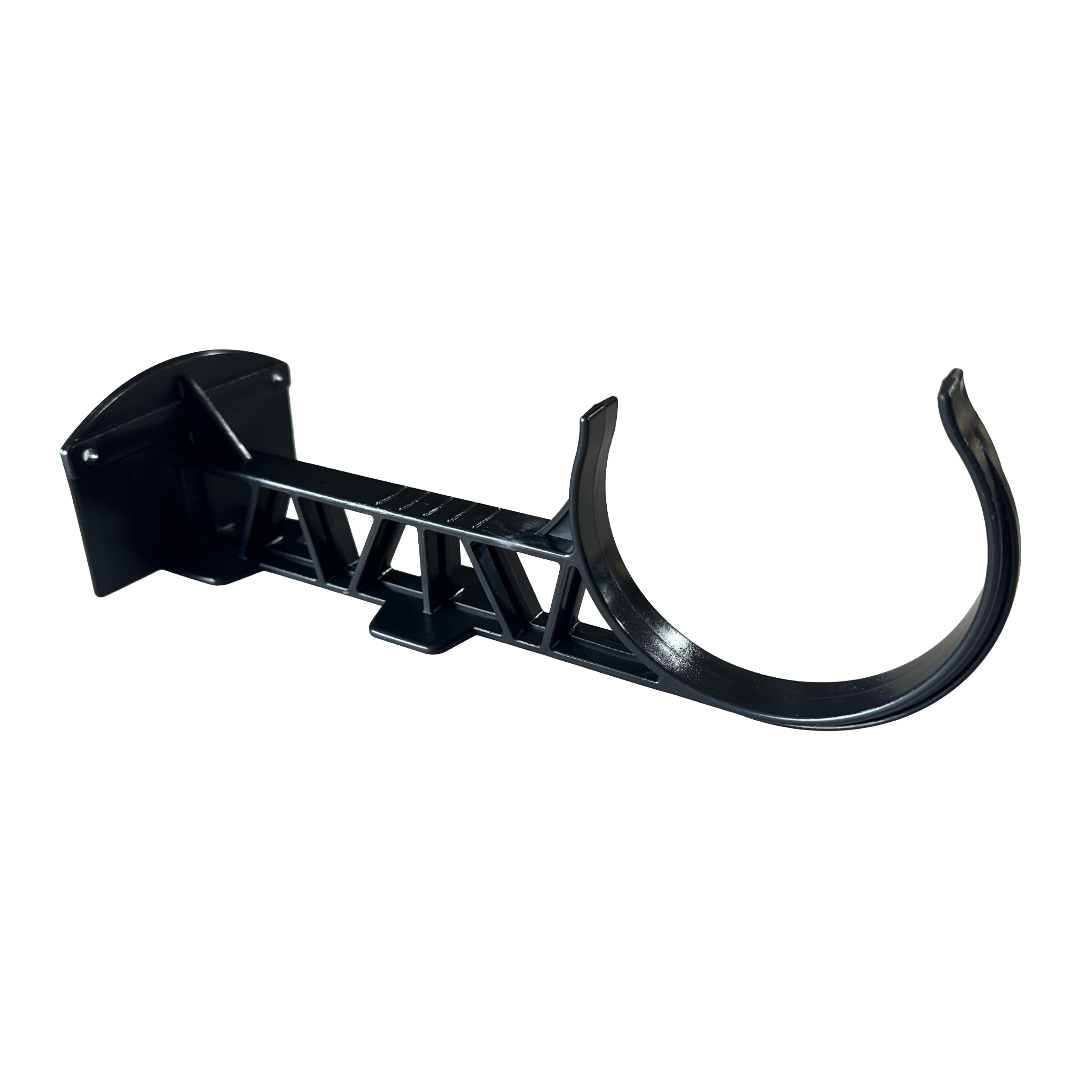

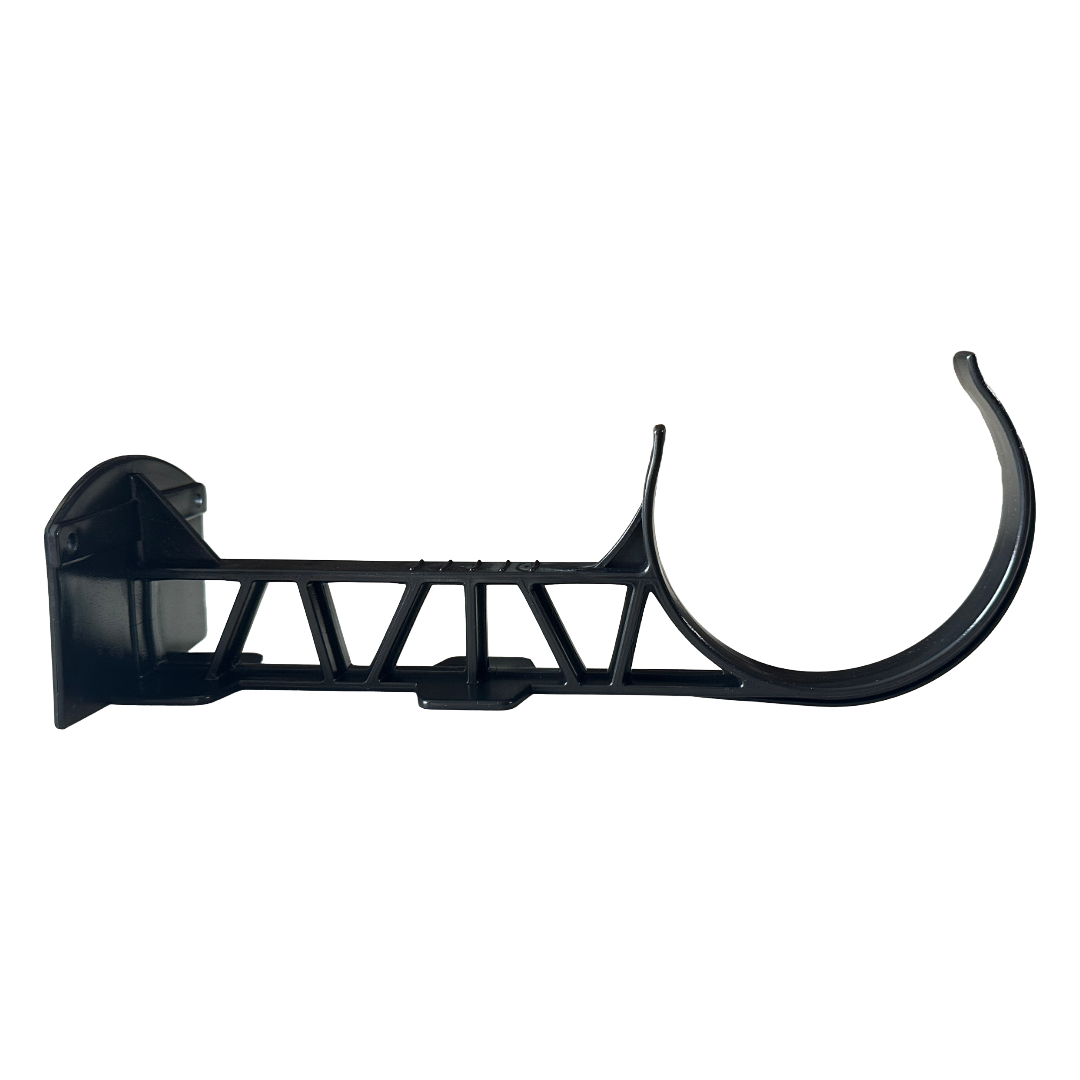

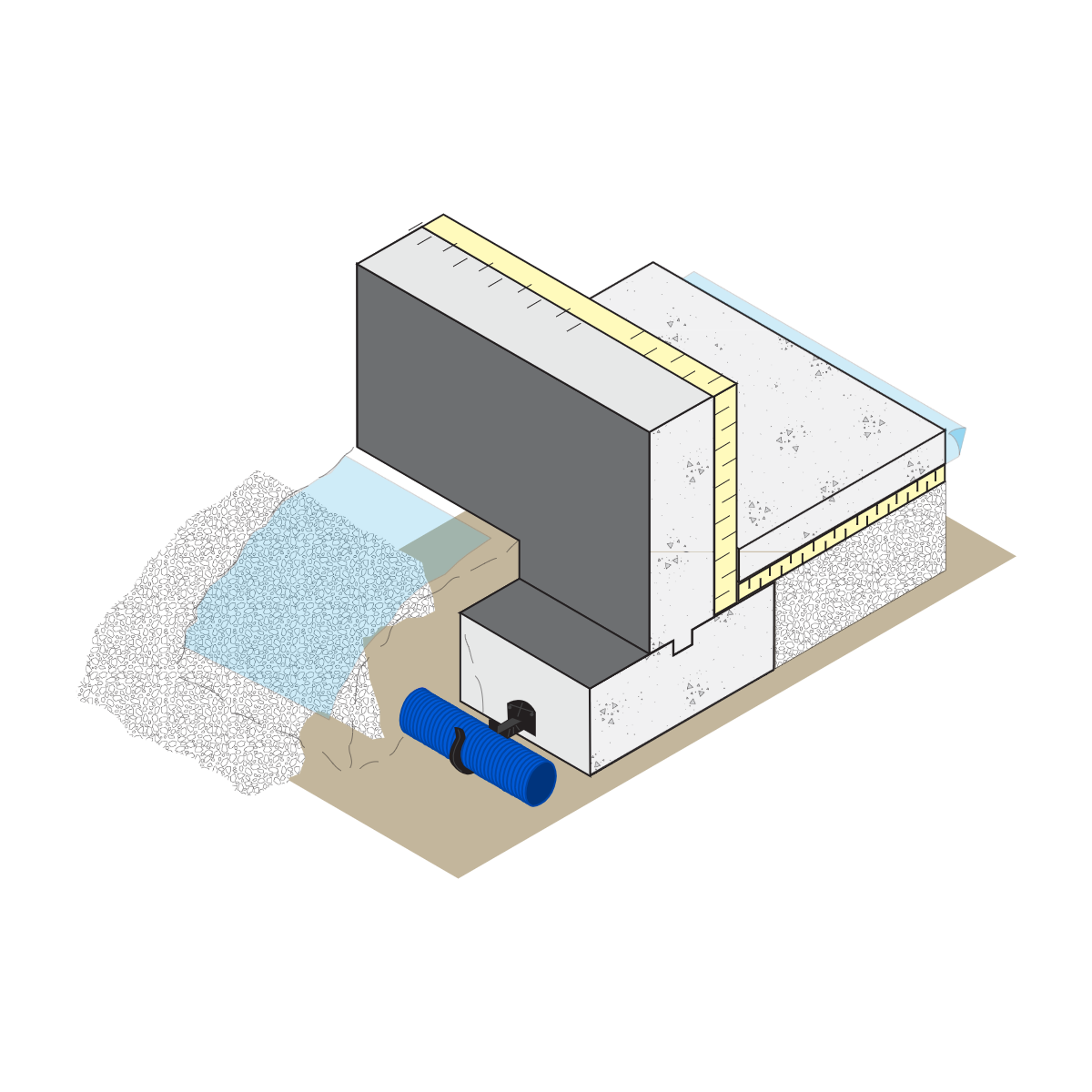

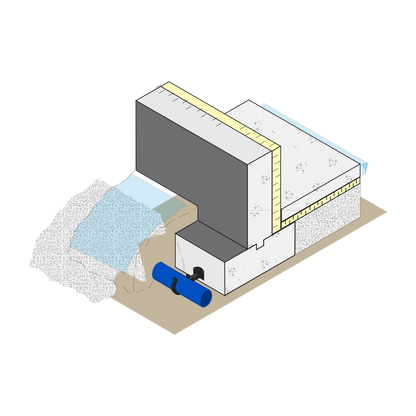

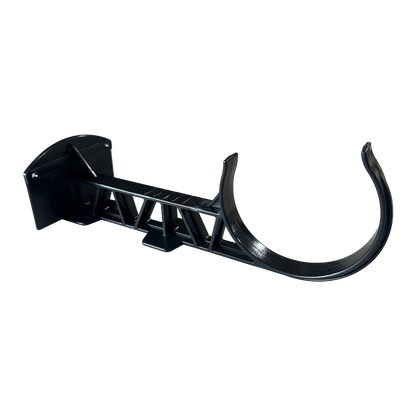

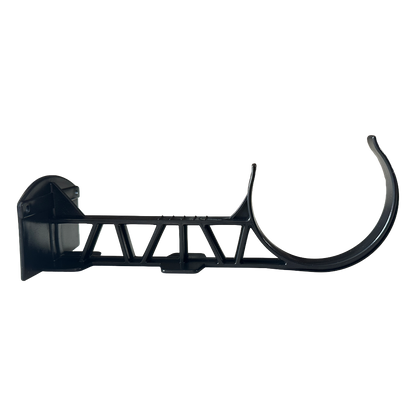

Keep your foundation drains properly aligned and installation-compliant with this heavy-duty plastic drain support. Engineered to hold both flexible and rigid agricultural drains in their correct position relative to the footing, it ensures consistent drainage performance and proper backfill coverage eliminating the common issue of drains shifting or sagging during the stone and fill stages.

A code-compliant solution for foundation drain installation, designed to meet National Building Code of Canada requirements (Section 9.14.3.3, Paragraph 4) for both flexible and rigid drains.

Key Benefits

• Ensures code-compliant installation and improved quality control on every job
• Prevents drain deviation that leads to poor or failed drainage
• Holds the drain in place for proper clear stone coverage and reliable backfill
• Doubles as vertical support for drainage cleanouts (chimneys)
• Made from recycled plastic

Recommended Installation

• Space supports every 48 inches along straight runs
• Reduce spacing to every 24 inches on sloped ground
• Place 16 inches from exterior corners and 36 inches from interior corners
• Fasten with two 1½" concrete nails
