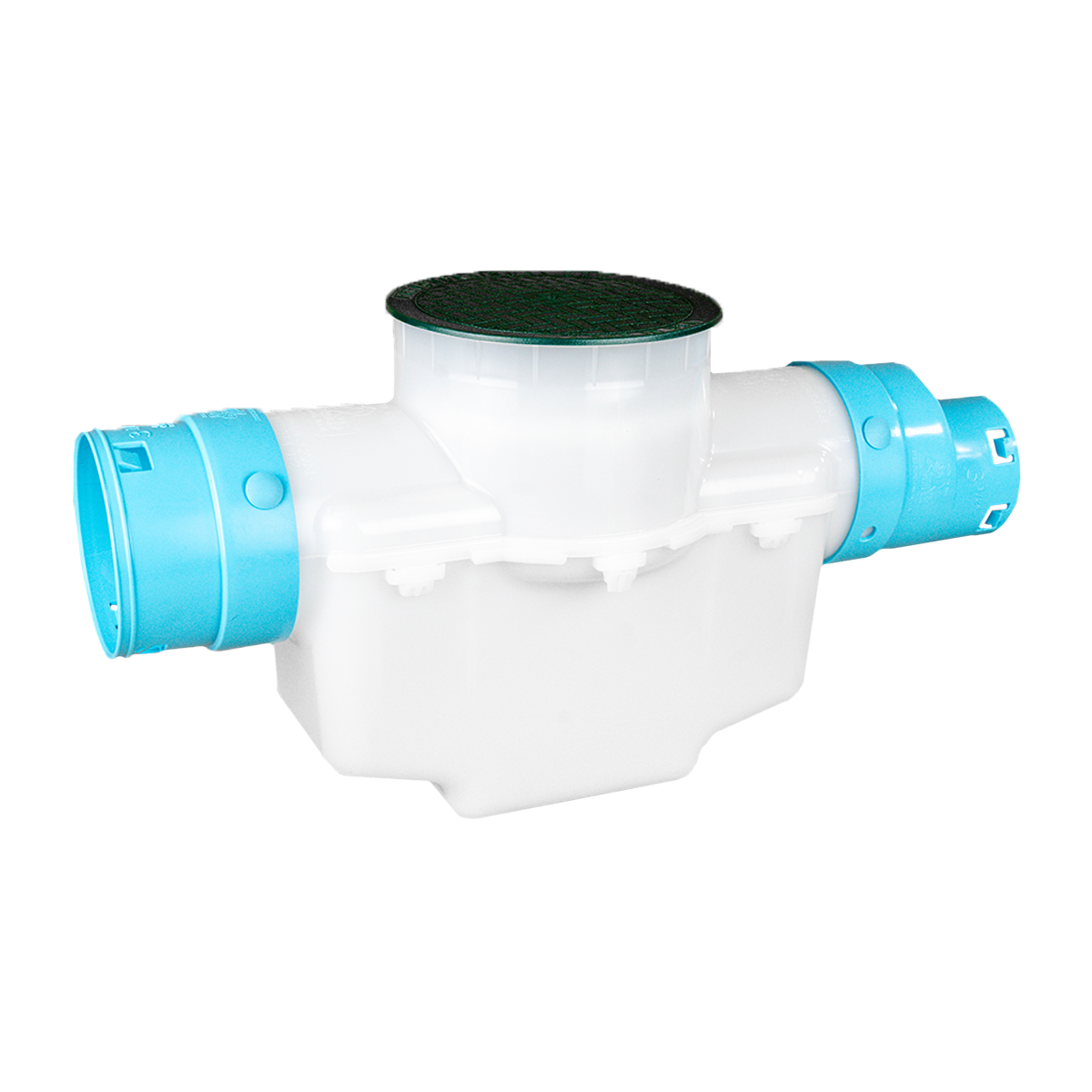

Introducing the revolutionary, new triple patent pending design for catch basins that will make all other inline catch basins obsolete. This innovative design boasts a larger sump capacity for sediment, and a slim 5″ width to fit in a trench made with a trencher. The best part is, the slim design does not require a large hole, making installation a breeze.

Not sure which basin size is best for your application? Check out FDM’s video on how to size your basin for your specific drainage needs and project environment: How to know if you need a 6 in. or 4 in. catch basin.

Add 1.5 inches of height to basin:
FDM's 6 in. Catch Basin Riser

Product Details

Kit Includes:

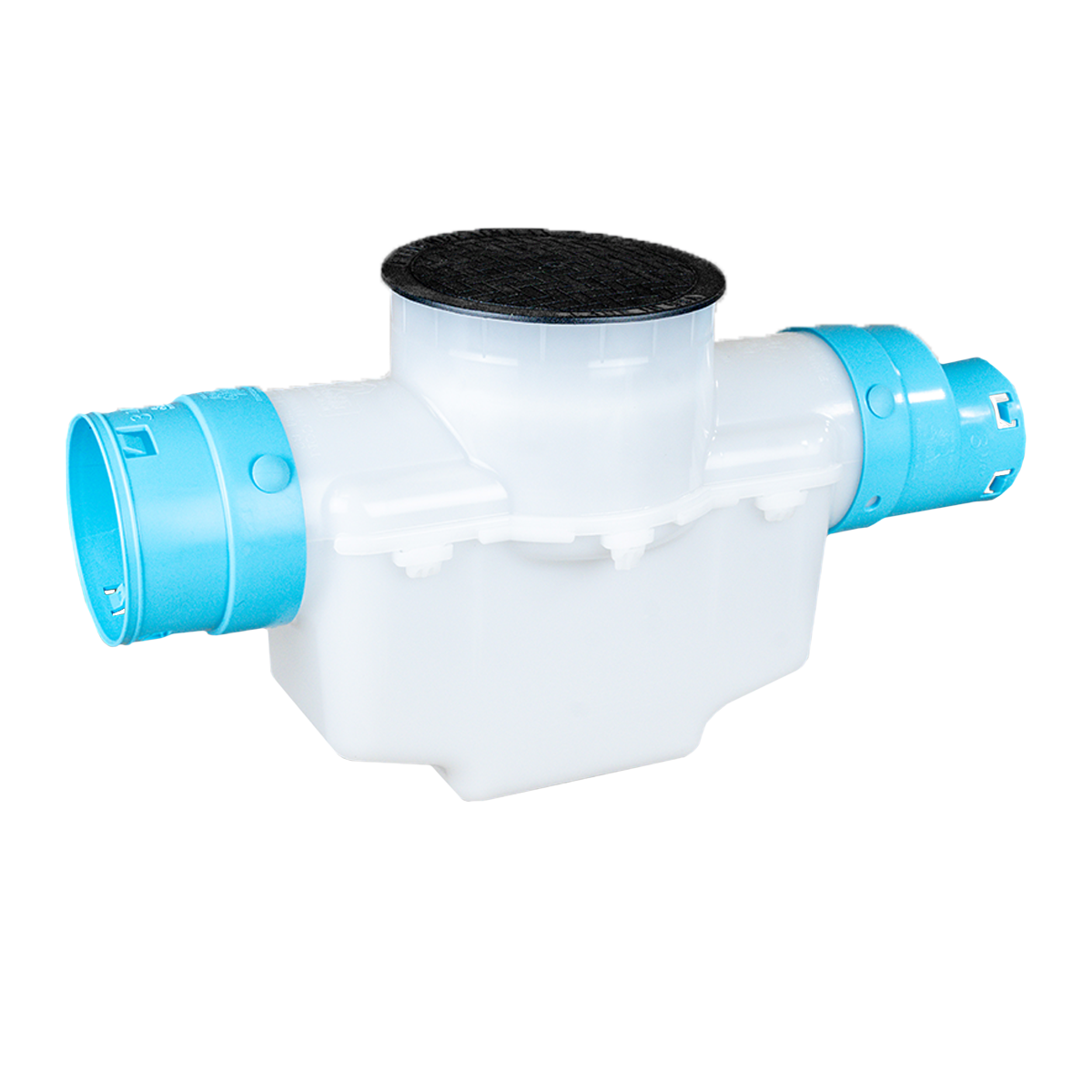

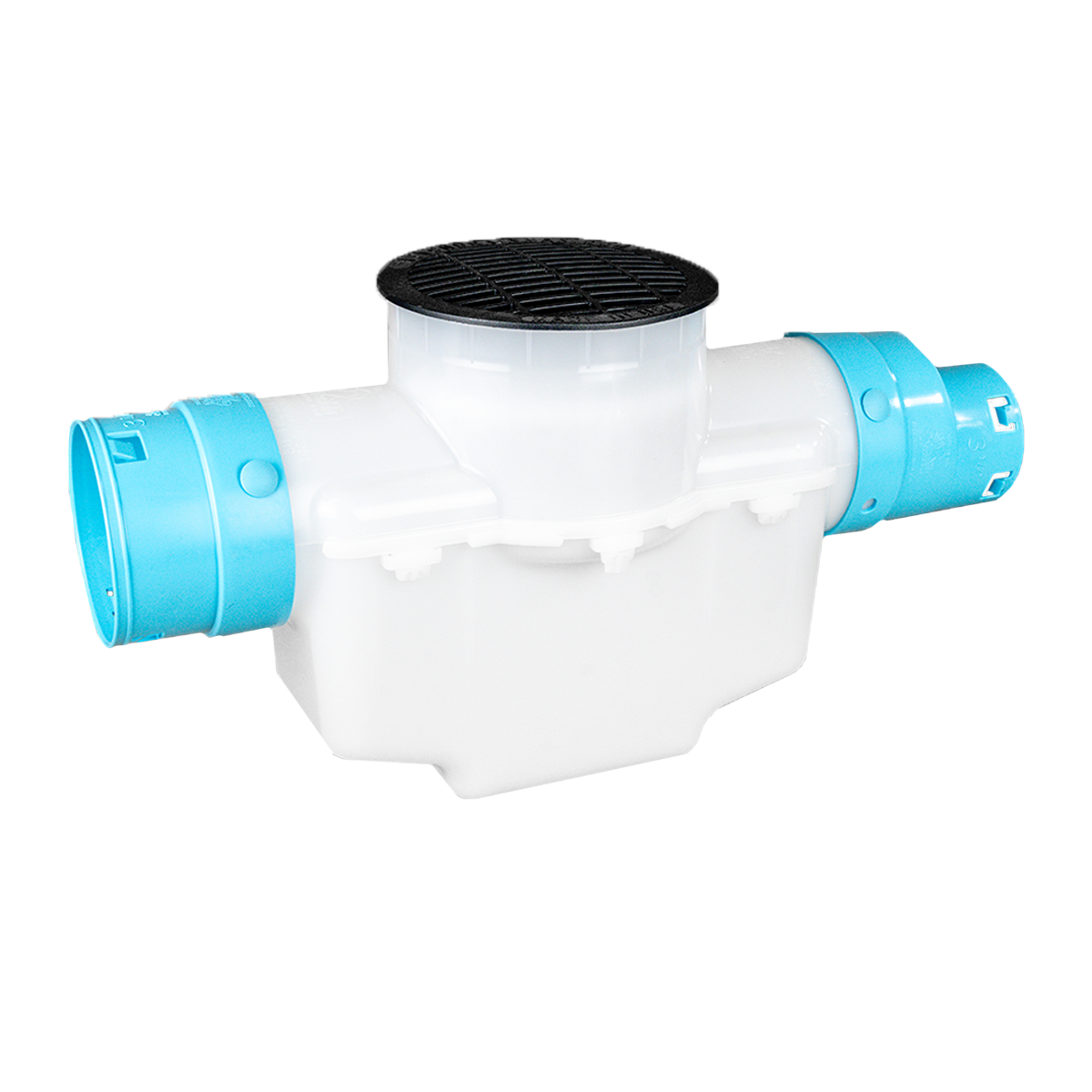

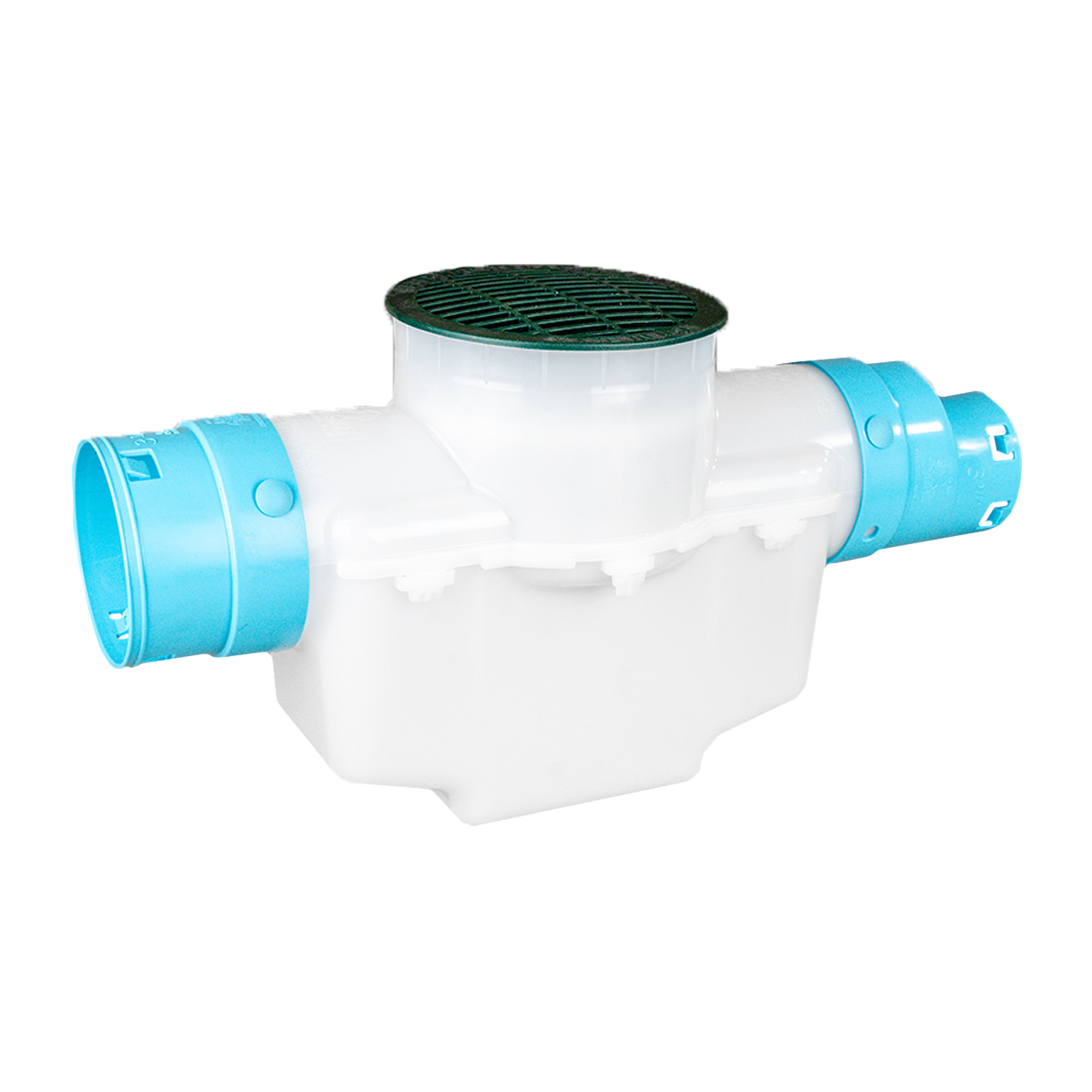

• 6 in. grate OR solid cover in green OR black
• 3½ in. Corrugated to 4 in. PVC HDPE Coupler with fasteners (female connection)
• 3½ in. Corrugated to 4 in. PVC HDPE Coupler with fasteners (male connection)
• 1 gallon Sump Basin Sediment Trap

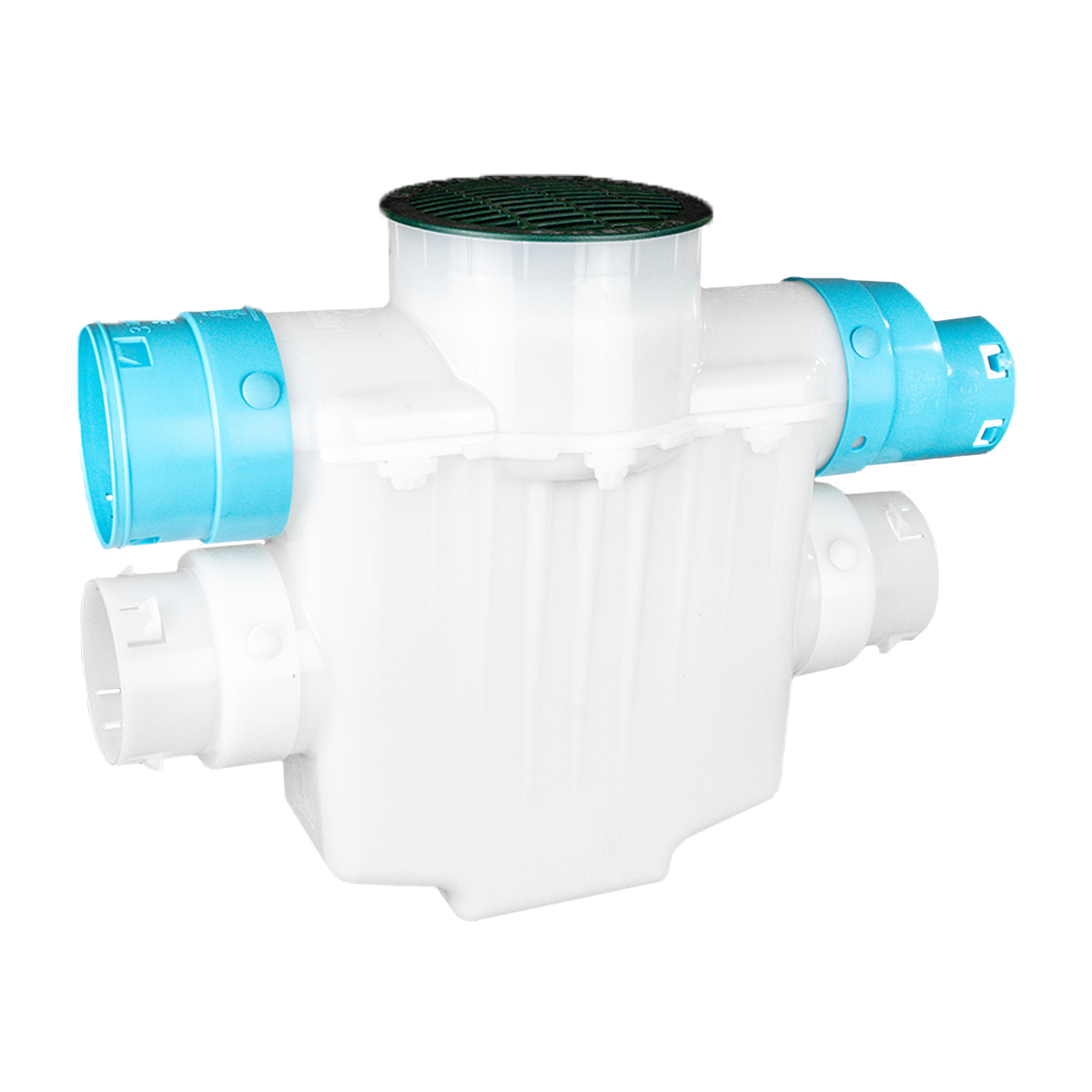

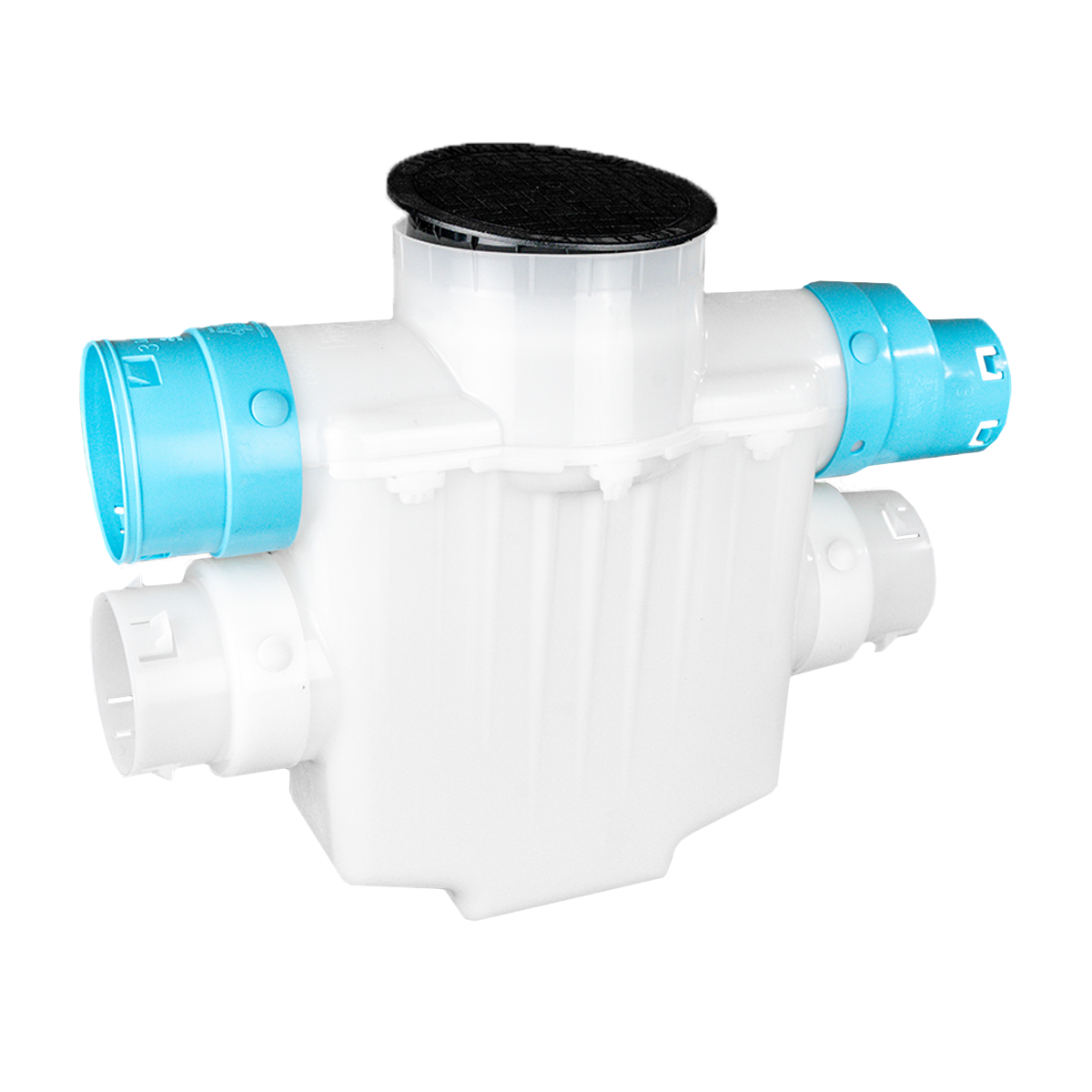

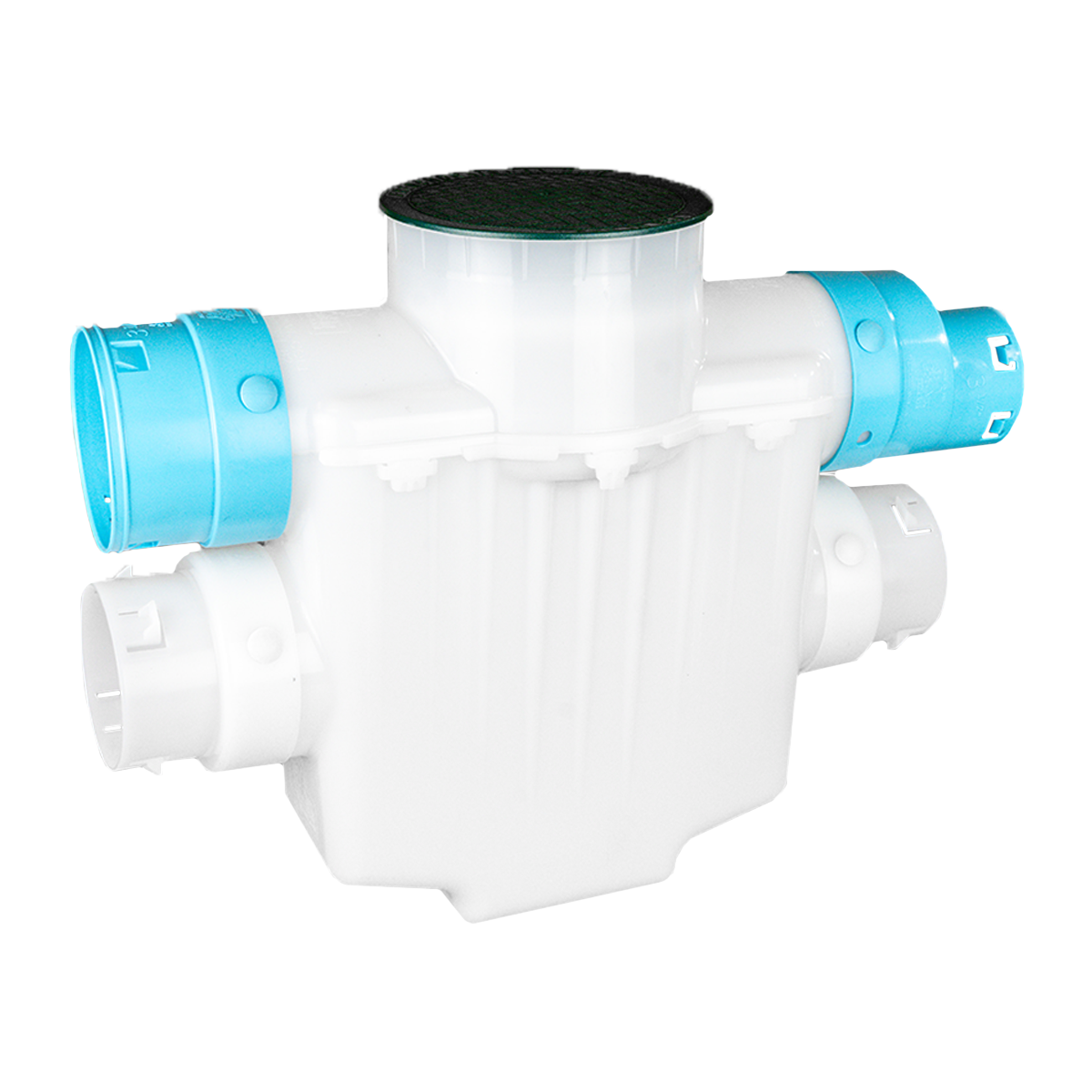

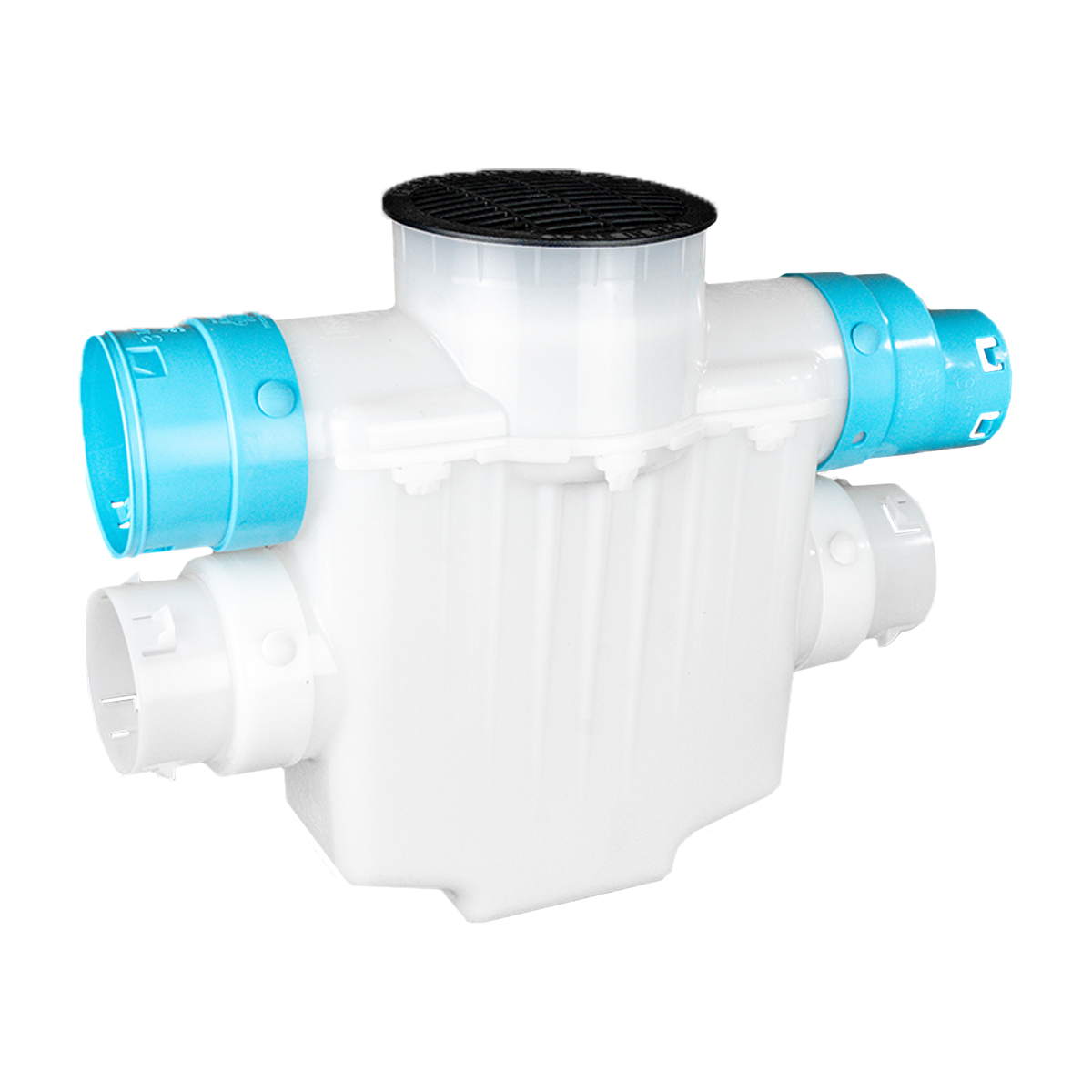

Now Available in 2 Sump Basin Sizes

Catch Basin Features:

• 100% virgin HDPE – no recycled materials
• No blown-in fillers
• 5-year money-back guarantee against breakage
• Connects to 3½ in. corrugated pipe
• Larger sump capacity for sediment
• Slim design easily fits in drainage trench
• No tools required

Superior Strength to Withstand Any Climate

The bottom portion (sediment trap) is designed to take freeze ups without cracking or breaking, made from 100% virgin HDPE with no blown-in fillers or recycled materials for superior strength and longevity. It is also mold injected for controlled wall thickness, and connects to 3½ in. Corrugated.

Pilot Holes for Optional Drilling

If the installer chooses to drill holes in the bottom of the sump pit, there are 6 pilot holes for easy drilling.

Easy to Clean

The sediment trap is sloped so debris doesn’t settle in the center, making sediment removal a breeze.

There are no corners, and the interior design is rounded for ease of cleaning out the sediment.

This innovative design was created by contractors, ensuring that wisdom, knowledge, and experience were incorporated into every aspect.
